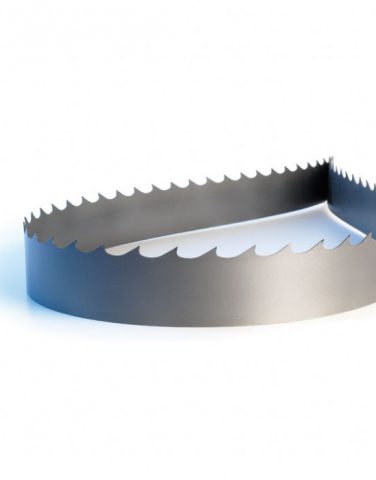

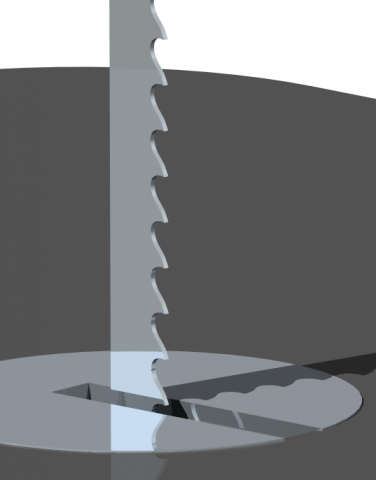

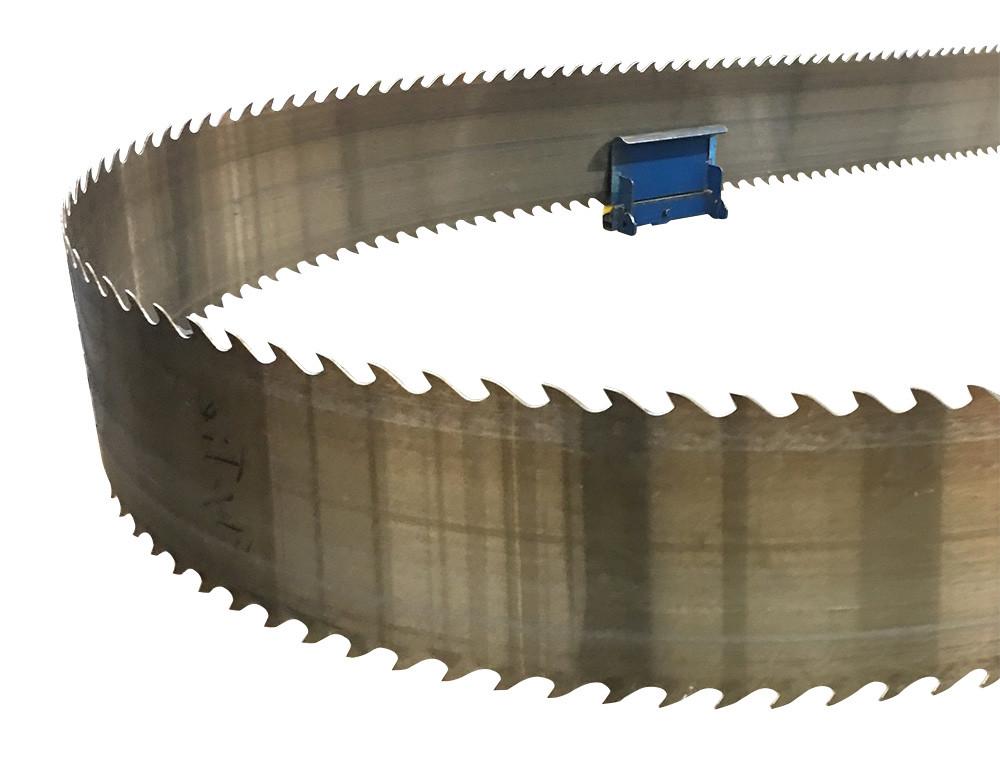

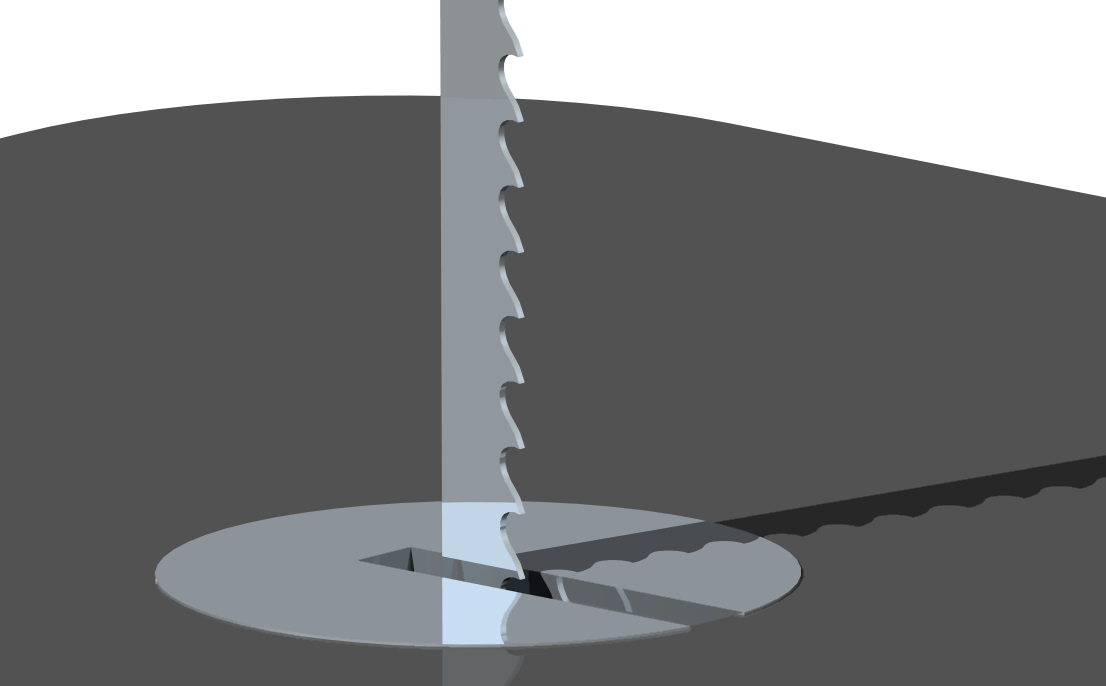

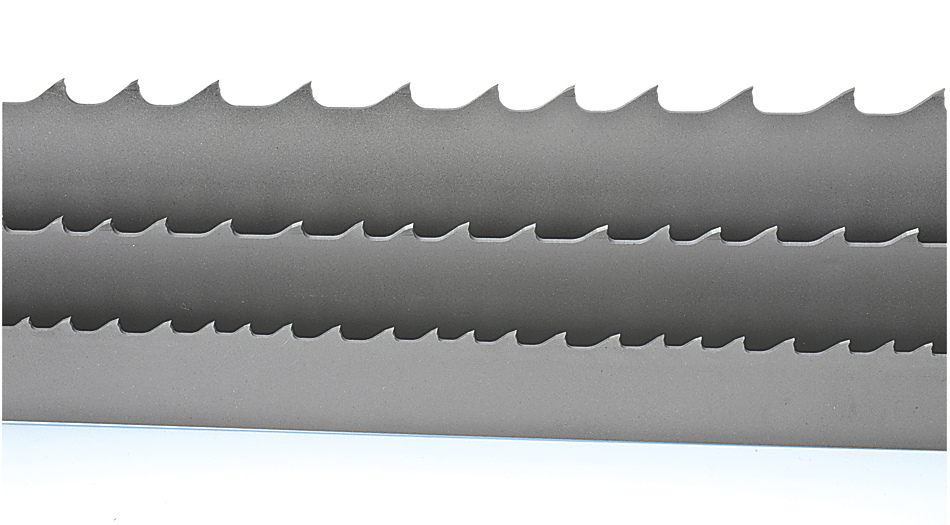

Basic characteristics – width, thickness and length of the band are determined by the machine of band saw.
| العرض – width |
السماكة – thickness |
السن –
tooth |
الطول – length |
| 10 |
0.6 – 0.7 |
6 – 7 |
25 – 50 M |
| 15 |
0.6 – 0.7 |
6 – 7 |
25 – 50 M |
| 20 |
0.6 – 0.7 |
6 – 7 |
25 – 50 M |
| 25 |
0.6 – 0.7 |
7 – 8 |
25 – 50 M |
| 30 |
0.7 – 0.8 – 0.9 |
8 – 9- 10 |
25 – 50 M |
| 35 |
0.8 – 1.0 |
10 – 12 |
25 – 50 M |
| 40 |
0.8 – 0.9 – 1.0 |
10 – 12 |
25 – 50 M |
| 45 |
0.9 – 1.0 |
10 – 12 |
25 – 50 M |
| 50 |
0.9 – 1.0 |
10 – 12 |
25 – 50 M |

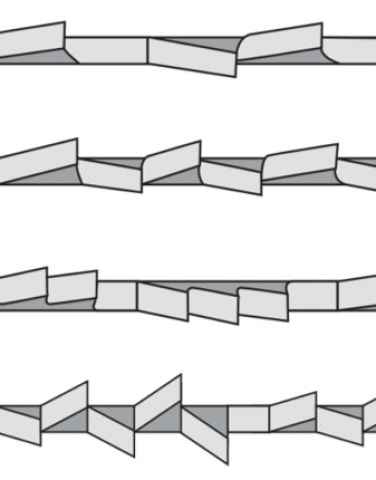

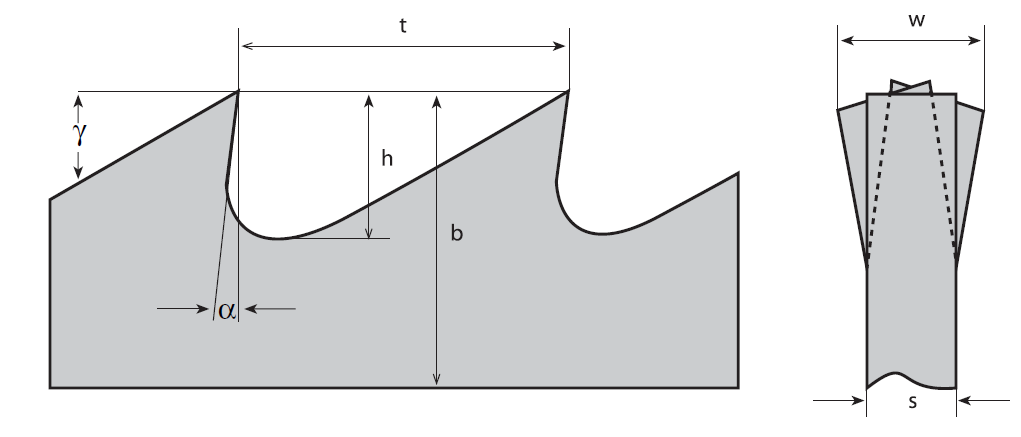

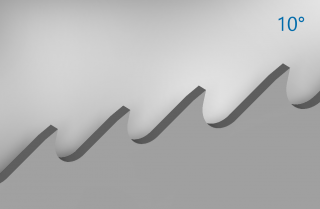

Tooth pitch, rake angle and width of setting significantly affects the cutting conditions and thus the quality of the final cut
If you are unsure about selecting the band saw blade for your application, do not hesitate to contact our sales representatives who will be happy to help you with the choice of the band saw blade

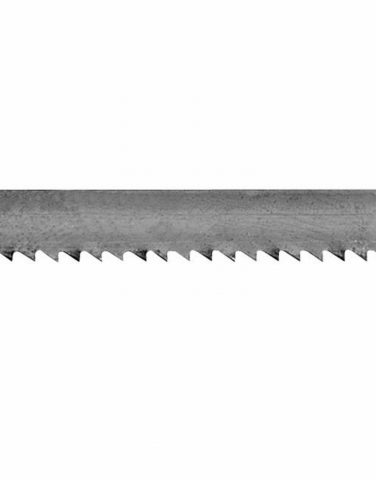

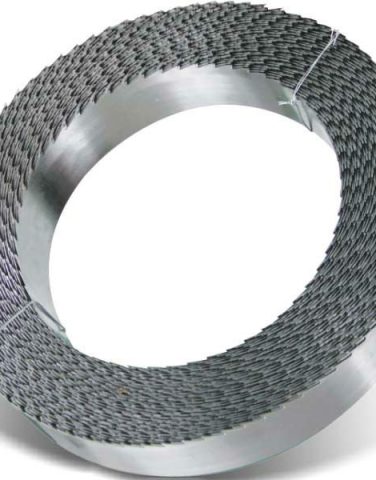

Our specially designed meat cutting band saw blades help lower cutting costs by yielding fast clean cuts with less waste. These blades are produced from a special high carbon steel and the teeth are precision sharpened which makes this blade the ideal choice for bone in, boneless, or frozen meat block cutting needs
| العرض – width |
السماكة – thickness |
السن –
tooth |
الطول – length |
| 16 |
0.5 |
7 |
25 – 50 |
| 20 |
0.5 |
7 |
25 – 50 |
The wire knife mainly used for cutting foam, rebounding foam, EVA, thermal insulation foam into various shapes/patterns, widely used for package products ,thermal insulation etc. industries
| العرض – width |
السماكة – thickness |
السن –
tooth |
الطول – length |
| 30 |
0.6 – 0.7 |
|
25 – 50 |
| 35 |
0.45 -0.8 |
|
25 – 50 |

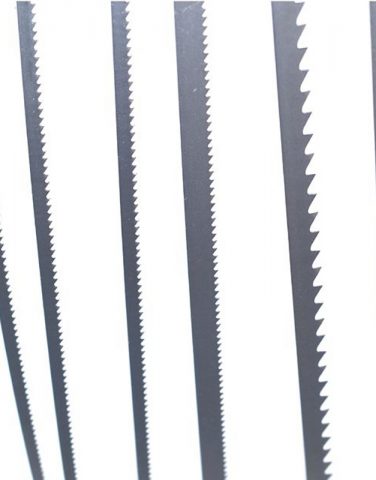

The band saw blades V mainly used for cutting foam, rebounding foam, EVA, thermal insulation foam into various shapes/patterns, widely used for package products ,thermal insulation etc. industries
| العرض – width |
السماكة – thickness |
السن –
tooth |
الطول – length |
| 25 |
0.7 |
4 |
25 – 50 |
| 30 |
0.8 |
4 |
25 – 50 |
| 35 |
0.45 – 0.8 |
4 |
25 – 50 |
